Get Your Measurements
Get the following measurments of your room and write them down in Inches. We will be using them later to determine what the best projector for you room and table size will be.
Distance from the nose of your short rail measured straight back to the wall.
The height of your ceiling measured from the floor.
Choose a Location
Short Rail - head/foot location
A Short Rail mounting location is by far the most common setup for the PPB Training system
This mounting location gives the most projector options and mounting configurations.
select the size table you have
I have a:With a 7 foot table you have many projector options. Find your measurements in the chart below and choose the projector that fits. Closer and higher is better!
- lumens: 3600
- Throw ratio: 1.95
- lumens: 3600
- Throw ratio: 1.52
- lumens: 3300
- Throw ratio: 1.15
8 & 8 Pro
- lumens: 3600
- Throw ratio: 1.95
- lumens: 3600
- Throw ratio: 1.52
- lumens: 3300
- Throw ratio: 1.15
Choose A Mounting Solutions

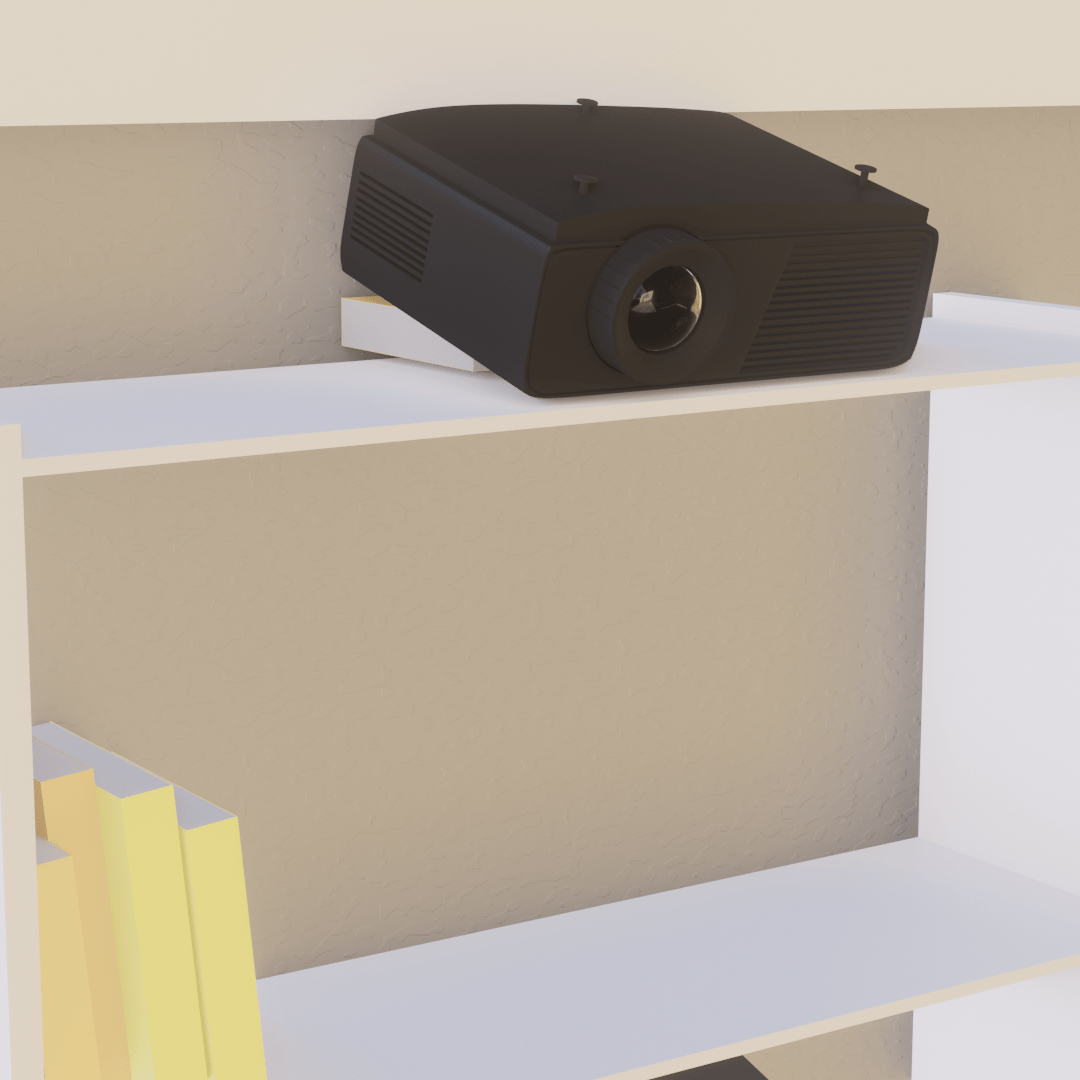

Shelving

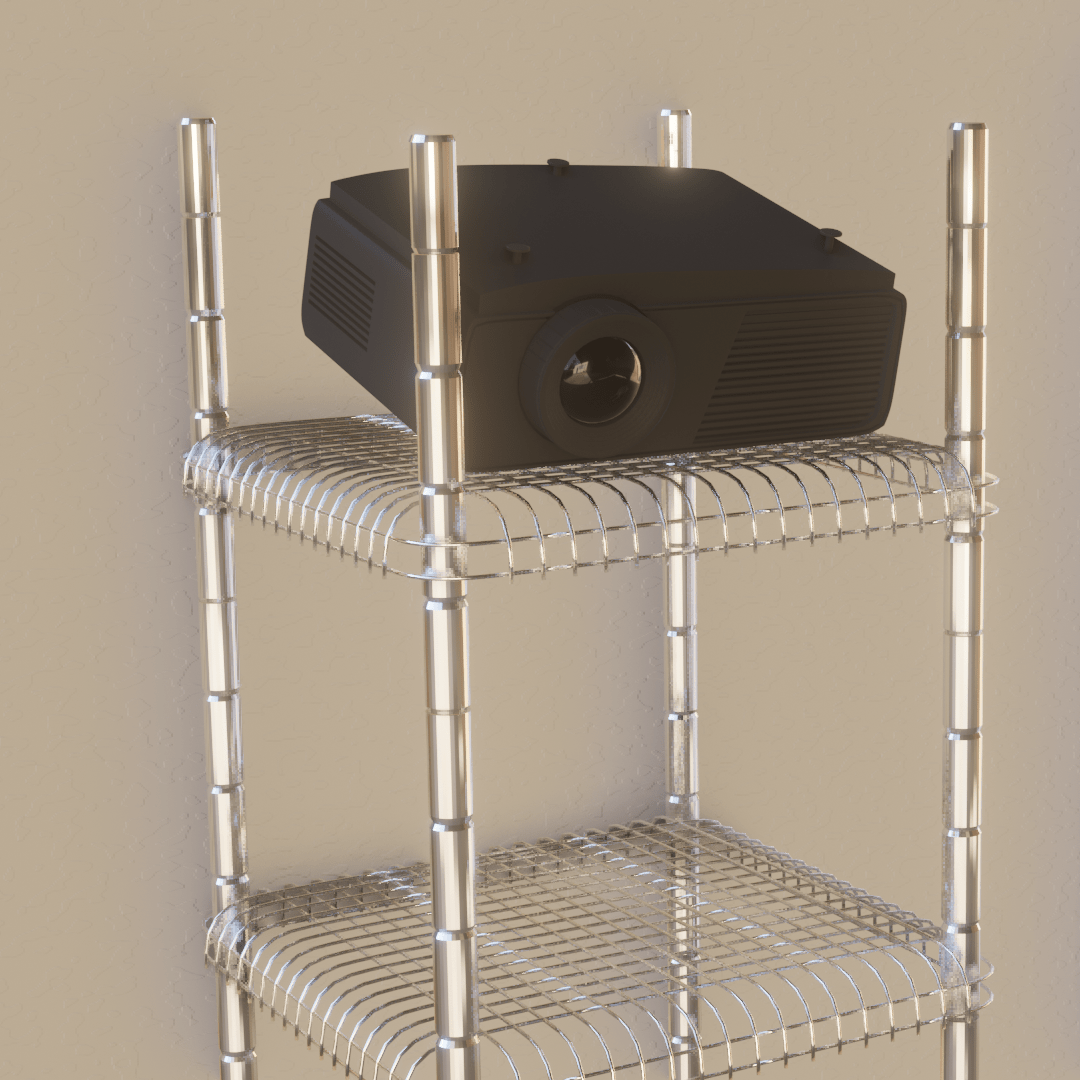

Portable Rack
Projector Mount
Speaker Stand
Top Down / Long Rail
Choosing a top down mount has both benefits and drawbacks. Both need to be considered carefully before going in this direction.
This mounting location gives a crisp and clean look to the projected patterns and also works in spaces that end rail mount are not possible. Unfortunately, Projectors are not designed to point vertically and the heat they produce at this angle will reduce the lifespan of the bulb by 40 to 60 percent. Proper ventilation can help mitigate this effect.
